The TurfMaker ®1000 Hydroseeder

Less Loading and Fewer Trips to the Water Source

PERFORMANCE FEATURES:

• User Friendly, High Productivity, Labor Saving
• Special Long Life Positive Displacement Pump
• Thick Wood Mulch Applications
• Long Hoses up to 500 Feet
• No Clogs - Clear Water Hose Flushing System
• Integrated Clear Water Holding Tank
• Tower Applications up to 125 Feet
• Carrying Deck for more than a Ton of Mulch
• Heavy Duty Trailer with Dual 7K Axles & Brakes

Big Machine Performance - Affordable Price
MULCH CAPACITIES:

• Wood Mulch (100%) - 400 lbs per tank load
• Paper Mulch - 475 lbs per tank load
• Blended Mulch - 425 lbs per tank load
• Bonded Fiber Matrix - 400 lbs per tank load

Compare Capacities Of Other Large Machines

The TurfMaker ® 1000- Technical Specification

Recommended Loading: *

• Wood Mulch (100%) - 400 lbs
• Blended Mulch - 425 lbs
• Shredded Paper - 475 lbs

Tank Load Coverage:

• Medium Rate (2000#/acre) - Wood Mulch: 8,700 sq.ft.
• Heavy Rate (3500#/acre) - Wood Mulch: 5,800 sq.ft.
• Light Rate (800#/acre) - Paper Mulch: 25,850 sq.ft.

Loading and Mixing Time: 10inutes or less

Application Time:

• 25 GPM to 50 GPM - hose: 20-40 minutes
• 50 GPM to 150 GPM - tower: 8-20 minutes

Typical Cycle Time: (Total time to get water, load, mix, and apply one tank load.) 30-60 minutes

Pumping Capacity: **

• Up to 500 ft - hose
• Up to 125 ft - tower

Tank:

• 10 Gauge Steel
• 950 Gallons Total Capacity

Paint (after sandblasting): Epoxy & Polyurethane

Weight:

• Empty- 4,000 lbs.
• Loaded- 11,000 lbs.

Skid Dimensions (footprint): 47” x 150½”

Overall Width, Length, Height: 56”, 153”, 94”

Standard Engine: Kohler 30 HP

Numerous Engine Options:

• Kohler Gas 25-38 HP
• Kohler Diesel 26-40 HP
• Yanmar Diesel 25-47 HP

Standard Pump:

• Double Rotary Gear - Positive Displacement
• Hardened Plated Case
• Stainless Steel Wear Plates
• Extended Bearings

Trailer Option: Two 7,000 lb Axles (Brakes Both Axles)

* Some mulches can be loaded heavier than others.
** Get Maximum Distance with Slicky Sticky ® in the mix.

The TurfMaker® 950 hydroseeder is ideal for Sod Quality Results™ applications. A quality minded contractor can apply wood fiber mulch at heavy rates, along with premium seed, tackifiers, fertilizer, and cover up to 7,000 - 8,000 sq ft. with a tank load. Jobs requiring near perfect results are made with hose applications and usually take about 45 minutes per tank load.

Typical roadside hydro-seeding applications can be made from the deck. One tank load can cover as much as a half acre with a thin application of paper mulch. This type of application is not recommended where highly reliable results are required.

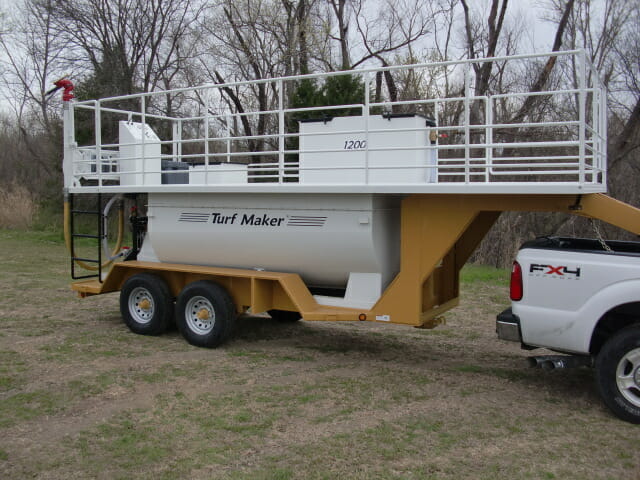

The TurfMaker ® 1200 Hydroseeder

Less Loading and Fewer Trips to the Water Source

PERFORMANCE FEATURES:

• User Friendly, High Productivity, Labor Saving
• Special Long Life Positive Displacement Pump
• Thick Wood Mulch Applications
• Long Hoses up to 500 Feet
• No Clogs - Clear Water Hose Flushing System
• Integrated Clear Water Holding Tank
• Tower Applications up to 125 Feet
• Carrying Deck for more than a Ton of Mulch
• Optional Trailer (2 - 7,000 lb Axles w/brakes)

Big Machine Performance - Affordable Price
MULCH CAPACITIES:

• Wood Mulch (100%) - 525 lbs per tank load
• Paper Mulch - 600 lbs per tank load
• Blended Mulch - 525 lbs per tank load
• Bonded Fiber Matrix - 525 lbs per tank load

Compare Capacities of other Large machines

The TurfMaker® 1200 hydroseeder is ideal for Sod Quality Results™ applications. A quality minded contractor can apply wood fiber mulch at heavy rates, along with premium seed, tackifiers, fertilizer, and cover up to 7,500 - 10,000 sq ft. with a tank load. Jobs requiring near perfect results are made with hose applications and usually take about 45 minutes per tank load.

Typical roadside hydro-seeding applications can be made from the tower. One tank load can cover as much as an acre with a thin application of paper mulch. This type of application is not recommended where highly reliable results are required.
